Node Effects

To apply an effect to the nodes in a diagram, create an instance of one of the effect classes and add this instance to the Diagram.NodeEffects collection. To apply the effect to individual nodes, add the instance to the node's Effects collection. To discard the diagram effects for a particular node, add a null reference (Nothing in Visual Basic) at position 0 in the node's Effects collection.

It is possible to combine different effects by adding instances of their appropriate types to the effect collections. If is also admissible to apply more than one effect of the same type.

The currently supplied effect types are Aero and Glass. They are examined in more details in the sections below.

Aero Effect

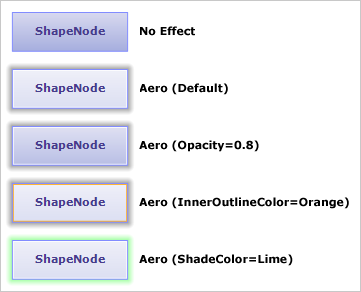

The Aero effect is represented by the AeroEffect class. The effect is designed to roughly resemble the Aero theme of Windows. More specifically, the effect adds semi transparency to the nodes, a smooth shade at the outside and a thin inset stroke. The semi transparency is specified through the Opacity property. Opacity varies from 0 to 1 inclusive, where 0 indicates full transparency and 1 indicates the original node color. The semi transparency is applied only on the node brush. The colors of the shade and the inner stroke are specified through the ShadeColor and InnerOutlineColor properties respectively. The following image illustrates how these properties affect the output:

The following example applies the Aero effect on the nodes of an existing diagram:

C#

AeroEffect effect = new AeroEffect();
effect.Opacity = 0.5;
effect.InnerOutlineColor = Color.FromArgb(100, 255, 255, 255);
diagram.NodeEffects.Add(effect);

Visual Basic

Dim effect As New AeroEffect()
effect.Opacity = 0.5
effect.InnerOutlineColor = Color.FromArgb(100, 255, 255, 255)
diagram.NodeEffects.Add(effect)

Tips

• The Aero effect works very well in scenarios with overlapping nodes or in cases where the background is more complex than solid color, due to the effect of semi transparency.
• Aero combines well with the Glass effect. There are some examples at the end of this topic.
• The ShadeColor is usually black or another dark color. However, some nice glow effects can be achieved by setting bright ShadeColor on a diagram with dark background.
• The Aero effect can impact performance if there are many nodes visible in the diagram.

Glass Effect

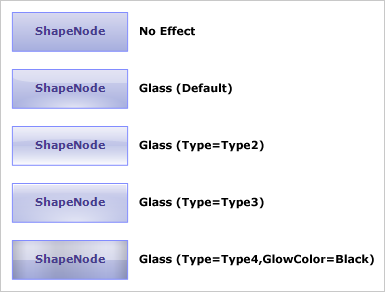

The Glass effect is represented by the GlassEffect class. The Glass effect adds visuals on top of the nodes in order to give the impression of a reflective surface. There are several variations of this effect, which can be selected through the Type property. The color of the reflection and the ambient color can be specified through the ReflectionColor and GlowColor properties respectively. When UsePenAsGlow is set to true the color of the node's pen is used as the ambient color. The following image illustrates the differences between the distinct effect types:

The following example applies a Glass effect with the default settings to the nodes of a diagram:

C#

diagram.NodeEffects.Add(new GlassEffect());

Visual Basic

diagram.NodeEffects.Add(New GlassEffect())

Tips

• The GlowColor is usually white. However, for Type4 glass effects it is often more suitable to use black glow.
• The Glass effect combines well with the Aero effect. There are some examples at the end of this topic.
• Several glass effects of different types can be applied simultaneously for emphasized effect.

Examples

The values of the effect properties are usually selected in accordance with the color scheme of the target diagram and the desired end result. In addition different types of effects can be applied simultaneously to achieve more interesting results. The examples below demonstrate possible effect combinations in various color contexts.

Aero & Glass (Dark on Light)

In this example the Aero and Glass effects are combined. The Aero effect is useful in scenarios when dark nodes are placed on light background or vice versa, in order to emphasize the contrast.

Here is the code that applies the above effects:

C#

diagram.NodeEffects.Add(new GlassEffect());
diagram.NodeEffects.Add(new AeroEffect());

Visual Basic

diagram.NodeEffects.Add(New GlassEffect())
diagram.NodeEffects.Add(New AeroEffect())

Aero & Glass (Light on Dark)

This example is similar to the first one, only this time the nodes are painted in light colors and the background is dark.

Here is the code that applies the above effect:

C#

GlassEffect glassEffect = new GlassEffect();
glassEffect.Type = GlassEffectType.Type3;
diagram.NodeEffects.Add(glassEffect);
diagram.NodeEffects.Add(new AeroEffect());

Visual Basic

Dim glassEffect As New GlassEffect()
glassEffect.Type = GlassEffectType.Type3
diagram.NodeEffects.Add(glassEffect)
diagram.NodeEffects.Add(New AeroEffect())

Glow Effect

This example uses bright colors on black background to create a glow effect. The example utilizes an Aero effect with ShadeColor set to the color of the nodes' pens.

Here is the code that applies the above effects:

C#

GlassEffect glassEffect = new GlassEffect();
glassEffect.Type = GlassEffectType.Type2;
glassEffect.UsePenAsGlow = true;
diagram.NodeEffects.Add(glassEffect);
AeroEffect aeroEffect = new AeroEffect();
aeroEffect.Opacity = 0;
aeroEffect.InnerOutlineColor = Colors.Black;
aeroEffect.ShadeColor = Color.FromArgb(255, 128, 255, 255);
diagram.NodeEffects.Add(aeroEffect);

Visual Basic

Dim glassEffect As New GlassEffect()
glassEffect.Type = GlassEffectType.Type2
glassEffect.UsePenAsGlow = True
diagram.NodeEffects.Add(glassEffect)
Dim aeroEffect As New AeroEffect()
aeroEffect.Opacity = 0
aeroEffect.InnerOutlineColor = Colors.Black
aeroEffect.ShadeColor = Color.FromArgb(255, 128, 255, 255)
diagram.NodeEffects.Add(aeroEffect)
