AeroEffect Class
Remarks See Also






Represents an effect that adds semitransparency to the node and emphasizes its outline by adding a shade and an inner stroke.

Namespace: MindFusion.Diagramming
Package: MindFusion.Diagramming

 Syntax

C#  Copy Code

public sealed class AeroEffect : NodeEffect

Visual Basic  Copy Code

Public NotInheritable Class AeroEffect
    Inherits NodeEffect

 Remarks

This effect can be applied to the nodes in a Diagram by adding an instance of this class to the NodeEffects collection.

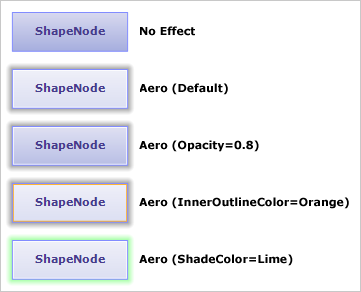

The following image illustrates the Aero effect applied to a rectangular node as well as how the different properties affect the output:

 Example

The following example demonstrates how to apply aero effect to the nodes of an existing diagram.

C#  Copy Code

diagram.NodeEffects.Add(new AeroEffect());

Visual Basic  Copy Code

diagram.NodeEffects.Add(New AeroEffect())

 Inheritance Hierarchy

System.Object
    MindFusion.Diagramming.NodeEffect
        MindFusion.Diagramming.AeroEffect
