Using the BrushCollection Editor

The BrushCollection editor allows design-time editing of collections of brushes. It is used by the following properties:

• ChartBrushes
• SummaryBrushes
• ShapeBrushes
• Y2ChartBrushes
• Y2ShapeBrushes
• SummaryShapeBrushes
• HorGridBrushes
• VertGridBrushes
• SectionBrushes
• SegmentBrushes

How to use the BrushCollection editor?

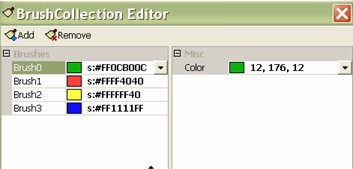

• The BrushCollection editor appears automatically when you want to edit any property of type BrushCollection at design time.

• To add a brush, click the Add tab. On the left side you can choose the type of brush you want. On the right side you can edit the properties of the brush, according to its type.
• When you have finished editing the brushes, press the Close button at the top right corner of the editor. The brushes appear as strings in the Property browser, the chart is updated with the new brushes.

See Also

Using the Color Collection Editor
