Using the Double Collection Editor

The DoubleCollection Editor enables design-time editing of double lists. It is used for setting the following properties:

• LineChart: HorGridPoints, VertGridPoints

• Scatter chart: ShapeSizes, SummaryShapeSizes, Y2ShapeSizes

• PieChart: Data

• RadarChart: SectionPoints, ShapeSizes

The DoubleCollection Editor appears when you are using the Properties window and click the field next to the chosen property on the right.

How to use the Double Collection Editor?

• Click to edit any of the property of type DoubleCollection  in the Property browser.

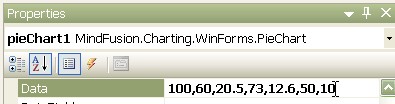

For example, for the PieChart, click the Data property values field, delete some old value, and add a new value for the data as desired.

Note 1
Use comma as delimiter of the DoubleCollection values.

Note 2
Use a point for the decimal separator.

• Click in the Form area. The chart is displayed according to the entered Data property values.


See Also

Using the SeriesCollection Editor
