Using the PenCollection Editor

With the PenCollection Editor you can edit collections of pens at design time. It is used for setting the following properties:

• ChartPens
• Y2ChartPens
• SummaryPens
• VertGridPens
• HorGridPens
• ShapePens
• SummaryShapePens
• AltAxesPens

• Showing the editor

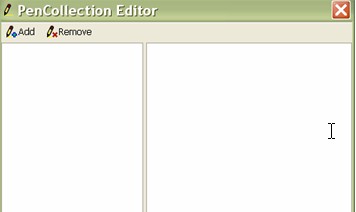

If you click to edit any property of type PenCollection, the PenCollection Editor appears automatically:

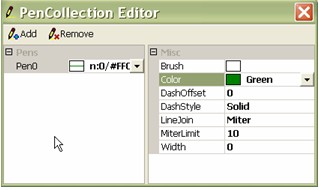

• To add a pen, select the Add tab. On the right, you can see and edit  the properties of the pen:

• When you have finished adding and customizing the pens, click the Close button at the top right corner. The pens appear as strings in the Property editor, the chart is updated with the new pens.
