Bitmap inside <image> is not display (Read 2799 times)

nullable Full Member Offline I Love MindFusion! Posts: 124 Joined: Aug 25^th, 2022	Bitmap inside <image> is not display Aug 25^th, 2022 at 10:41am	Print Post
	Hi, I have an svg file(https://dropmefiles.com/sY0gq) that contains a bitmap image in the <image> tag in addition to the primitives, and I'm trying to display this svg on a diagram using the code below, the image, unlike primitives, is not displayed Code var svgNode = new SvgNode(); SvgContent content = new SvgContent(); content.Parse(@"C:\Users\User\Documents\test2.svg"); svgNode.Content = content; diagram.Nodes.Add(svgNode);

	IP Logged

Slavcho YaBB Moderator Offline tech.support Posts: 3378 Joined: Oct 19^th, 2005	Re: Bitmap inside <image> is not display Reply #1 - Aug 25^th, 2022 at 11:03am	Print Post

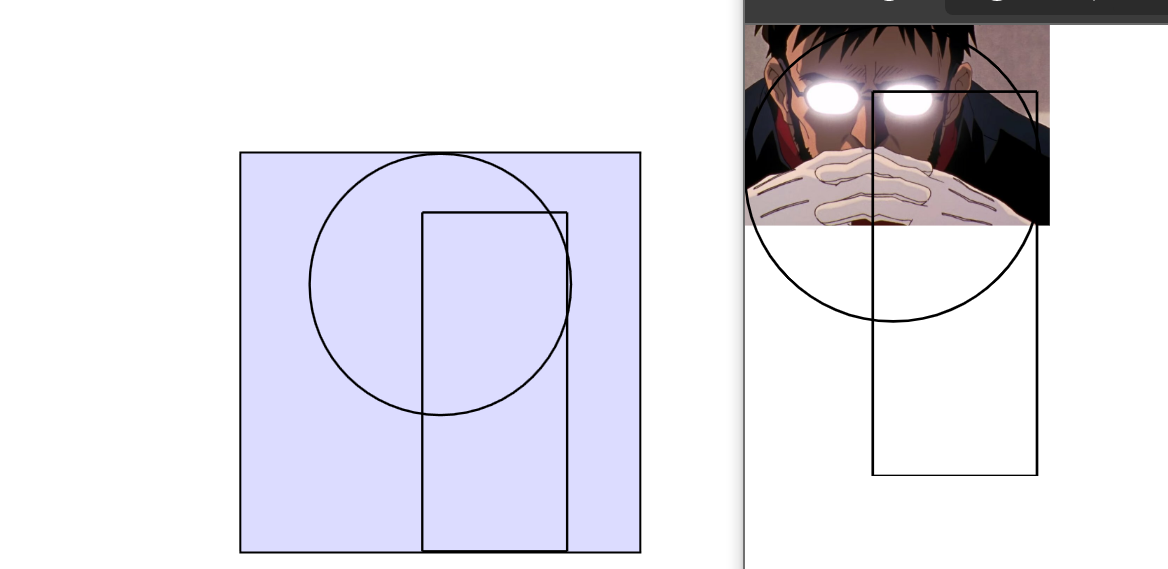

	Hi, Indeed, SvgContent does not load bitmaps at this time. We'll have it in mind for next release. Regards, Slavcho Mindfusion


	IP Logged

Slavcho YaBB Moderator Offline tech.support Posts: 3378 Joined: Oct 19^th, 2005	Re: Bitmap inside <image> is not display Reply #2 - Sep 23^rd, 2022 at 12:18pm	Print Post
	Hi, Try this build - https://mindfusion.eu/_beta/wpfdiag383.zip Regards, Slavcho Mindfusion


	IP Logged

Ivan K. YaBB Newbies Offline I Love MindFusion! Posts: 9 Joined: Jun 30^th, 2021	Re: Bitmap inside <image> is not display Reply #3 - Nov 29^th, 2022 at 11:57am	Print Post

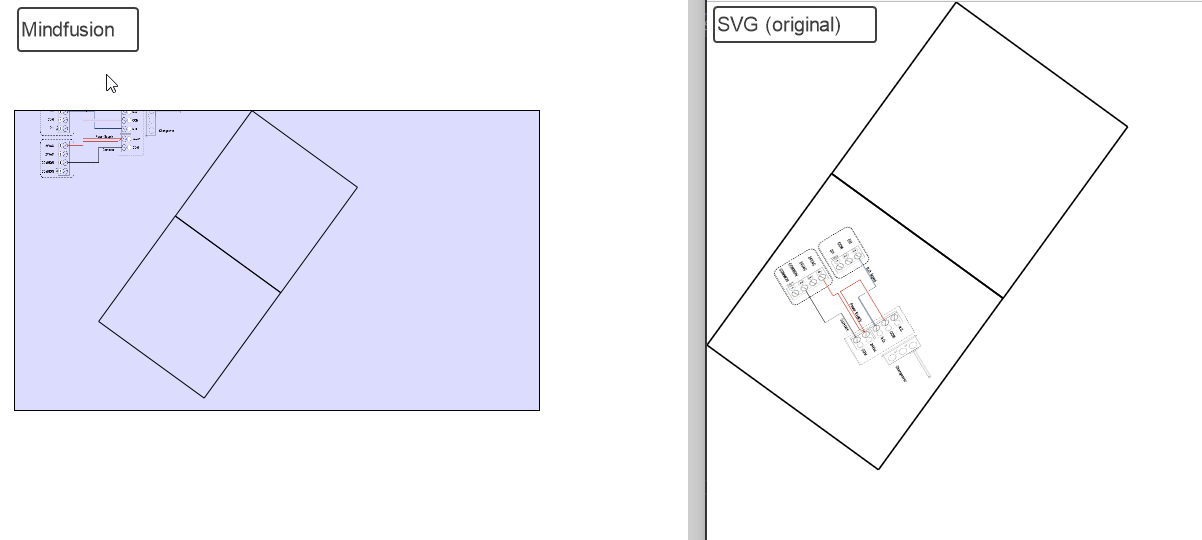

	Hi All! Thank you for elaboration. Unfortunately, SVG import does not work as expected. If image has transform matrix - transformation is not applied on the resulting diagram. Could you please check? Sample SVG: https://dropmefiles.com/53tYz Code (Java) var svgNode = new SvgNode(); SvgContent content = new SvgContent(); content.Parse(@"D:/personal/img.svg"); svgNode.Content = content; diagram.Nodes.Add(svgNode);

	IP Logged

Ivan K. YaBB Newbies Offline I Love MindFusion! Posts: 9 Joined: Jun 30^th, 2021	Re: Bitmap inside <image> is not display Reply #4 - Dec 6^th, 2022 at 1:10am	Print Post
	Moved to a new topic: https://mindfusion.eu/Forum/YaBB.pl?num=1670288989/0#0


	IP Logged

Slavcho YaBB Moderator Offline tech.support Posts: 3378 Joined: Oct 19^th, 2005	Re: Bitmap inside <image> is not display Reply #5 - Dec 6^th, 2022 at 8:42am	Print Post
	Hi, This build applies image transform - https://mindfusion.eu/_beta/wpfdiag39.zip Regards, Slavcho Mindfusion


	IP Logged
