Tutorial 1: Getting started

This tutorial will show you how to set up your project to use MvcDiagram.

1. Creating an ASP.NET Core Application

Go to File->New->Project. From the list of installed templates choose ASP.NET Core Web Application and hit Next. Enter "Tutorial1" as name of the application and press Create.

2. Referencing the assemblies

Add references to MindFusion.Common.dll, MindFusion.Diagramming.dll and MindFusion.Diagramming.Mvc.dll to the project. To add the references, locate the "Dependencies" node in the Solution Explorer window and choose "Add reference" from the context menu. When the dialog appears, navigate to the MvcDiagram's installation folder, select the needed dll files and press OK. The three assemblies should now appear under the "References" node.

MindFusion Diagramming relies on the Microsoft.Maui.Graphics NuGet package for 2D drawing type definitions and server-side image generation. You can install it from the "Manage NuGet packages" menu command.

3. Referencing the client scripts

Add MindFusion.Diagramming.js file to the wwwroot/js subfolder of the project. To do this, locate the node in the Solution Explorer tree and select Add-> Existing item from the context menu.  Navigate to the MvcDiagram's installation folder, select the MindFusion.Diagramming.js file and click "Add". The MindFusion.Diagramming.js file should now appear under the "wwwroot/js" tree node. If you need to change the location of the MindFusion.Diagramming.js script, set the ClientScriptLocation to configure the control:

C#

view.ClientScriptLocation = "/SomeFolder/MindFusion.Diagramming.js";

4. Adding a DiagramView to the page

Open the Index.cshtml page, which is located below the Views->Home node in the Solution Explorer tree. Add references to the MindFusion.Diagramming.Mvc namespace:

HTML

@using MindFusion.Diagramming.Mvc

Add a call to the HTML helper's DiagramView method by typing the following line:

HTML

@Html.DiagramView((DiagramView)ViewBag.DiagramView, new { style = "width:800px; height:700px;" })

5. Creating the diagram

Open the controller class HomeController.cs, which is located in the Controllers node in the Solution Explorer tree. On top add the following references:

C#

using Microsoft.Maui.Graphics;
using MindFusion.Diagramming;
using MindFusion.Diagramming.Mvc;
using SolidBrush = MindFusion.Drawing.SolidBrush;
using LinearGradientBrush = MindFusion.Drawing.LinearGradientBrush;

In the body of the Index method add

C#

DiagramView view = new DiagramView("diagramView1");

The code above creates a new DiagramView object with Id set to "diagramView1".

Change some properties of the view's Diagram object:

C#

Diagram diagram = view.Diagram;
diagram.BackBrush = new SolidBrush(Colors.White);
diagram.LinkHeadShape = ArrowHeads.Triangle;
diagram.LinkHeadShapeSize = 3;DiagramStyle style = new DiagramStyle();
style.FontFamily = "Verdana";
style.Brush = new LinearGradientBrush(Colors.LightBlue, Colors.Blue, 90);
style.Stroke = new SolidBrush(Colors.Black);
diagram.Style = style;

Diagram's BackBrush property defines the default color with which the interior of the diagram will be filled. Diagram's LinkHeadShape and LinkHeadShapeSize properties define the default base shape and size for links' ending arrowhead. Additional styles can be applied to the diagram items by using the diagram's Style property.

Add the following code to add some ShapeNodes to the diagram. ShapeNode objects can be drawn as various geometric shapes, as set through their Shape property. There are over 100 predefined shapes exposed as static members of the Shapes class. The Shape property can be set to one of the predefined shapes: RoundRect, Rectangle, Ellipse, Process, Procedure, Delay and much more.

C#

// add some nodes and links to the view's Diagram
ShapeNode node1 = diagram.Factory.CreateShapeNode(new Rect(55, 10, 40, 15));
node1.Shape = Shapes.Terminator;
node1.Text = "Start";
node1.Brush = new LinearGradientBrush(Colors.Yellow, Colors.Orange, 90);ShapeNode node2 = diagram.Factory.CreateShapeNode(new Rect(50, 40, 50, 20));
node2.Text = "Receive order via e-mail";ShapeNode node3 = diagram.Factory.CreateShapeNode(new Rect(50, 70, 50, 20));
node3.Text = "Copy and paste e-mail data into database";ShapeNode node4 = diagram.Factory.CreateShapeNode(new Rect(55, 100, 40, 40));
node4.Shape = Shape.FromId("Decision");
node4.Text = "Shipping involved?";
node4.Brush = new LinearGradientBrush(Colors.White, Colors.Fuchsia, 90);ShapeNode node5 = diagram.Factory.CreateShapeNode(new Rect(100, 135, 50, 20));
node5.Shape = Shape.FromId("Save");
node5.Text = "Print invoice and UPS label";
node5.Brush = new SolidBrush(Colors.Chartreuse);ShapeNode node6 = diagram.Factory.CreateShapeNode(new Rect(100, 165, 50, 20));
node6.Text = "Send e-mail to confirm shipping";
diagram.Nodes.Add(node6);ShapeNode node7 = diagram.Factory.CreateShapeNode(new Rect(100, 195, 50, 20));
node7.Text = "Assemble package and ship";ShapeNode node8 = diagram.Factory.CreateShapeNode(new Rect(55, 230, 40, 15));
node8.Shape = Shapes.Terminator;
node8.Text = "End";
node8.Brush = new LinearGradientBrush(Colors.Yellow, Colors.Orange, 90);

Add the following code to add some DiagramLinks to the diagram:

C#

diagram.Factory.CreateDiagramLink(node1, node2);
diagram.Factory.CreateDiagramLink(node2, node3);
diagram.Factory.CreateDiagramLink(node3, node4);

DiagramLink link4 = diagram.Factory.CreateDiagramLink(node4, node5);
link4.Text = "Yes";

diagram.Factory.CreateDiagramLink(node5, node6);
diagram.Factory.CreateDiagramLink(node6, node7);
diagram.Factory.CreateDiagramLink(node7, node8);

DiagramLink link8 = diagram.Factory.CreateDiagramLink(node4, node8);
link8.Text = "No";

Finally, store the newly created view in the ViewBag dictionary:

C#

ViewBag.DiagramView = view;

6. Running the application

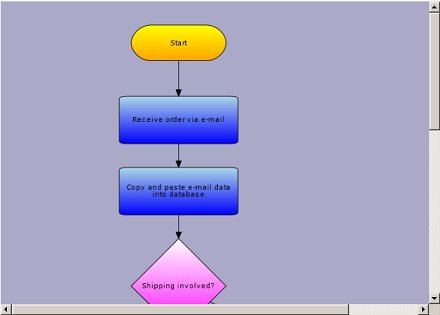

From the main menu choose Debug->Start without debugging or press CTRL+F5. The image below depicts how the application would look like:
