This tutorial shows how to enable dependencies between activities in an project using MindFusion.DataViews for WPF
1. Create and initialize a new WPF application project
Follow steps 1 through 4 from Tutorial 1.
2. Create dependencies between the activities in the chart
To create the dependencies you could use the built-in Dependency class, but you are not limited to it and can use you own custom created class that implements the IDependency interface. First, create a collection that will hold the Dependency objects.
C#
Copy Code
|
---|
ObservableCollection<Dependency> dependencies = new ObservableCollection<Dependency>(); |
Visual Basic
Copy Code
|
---|
Dim dependencies As New ObservableCollection(Of Dependency)() |
Next, create some dependencies between the existing Activity objects and add them to the underlying collection.
C#
Copy Code
|
---|
dependencies.Add(new Dependency() { From = a0, To = a1, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a0, To = a2, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a2, To = a3, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a1, To = a4, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a3, To = a4, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a1, To = a5, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a4, To = a6, DependencyType = DependencyType.FinishToStart }); dependencies.Add(new Dependency() { From = a5, To = a6, DependencyType = DependencyType.FinishToStart }); |
Visual Basic
Copy Code
|
---|
dependencies.Add(New Dependency() With { _ .From = a0, _ .[To] = a1, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a0, _ .[To] = a2, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a2, _ .[To] = a3, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a1, _ .[To] = a4, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a3, _ .[To] = a4, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a1, _ .[To] = a5, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a4, _ .[To] = a6, _ .DependencyType = DependencyType.FinishToStart _ }) dependencies.Add(New Dependency() With { _ .From = a5, _ .[To] = a6, _ .DependencyType = DependencyType.FinishToStart _ }) |
3. Create the project and associate it with the view
Modify the project initialization from the previous tutorial to include the newly created dependencies like this:
C#
Copy Code
|
---|
IProjectViewModel project = activityView.CreateViewModel(activities, dependencies, null, null, typeof(Activity), typeof(Dependency), null, null); |
Visual Basic
Copy Code
|
---|
Dim project As IProjectViewModel = activityView.CreateViewModel(activities, dependencies, Nothing, Nothing, GetType(Activity), GetType(Dependency), Nothing, Nothing) |
4. Build and run

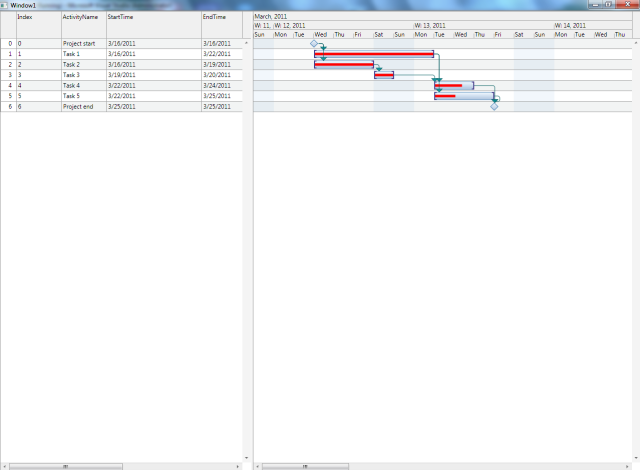

Compile and run the application. The result should look similar to the image below:
Note |
---|
You can find the complete source code of this tutorial in the product installation folder, under the folder for the appropriate .NET version and language. |
